How to Set Up Open Discord Bridge

Open Discord Bridge (ODB) relays chat and server events between your Factorio server and a Discord text channel. In-game messages show up in Discord; Discord messages show up in-game as [Discord] username: message.

You need a Factorio server on AleForge and a Discord server where you can add a bot.

Keep your Discord bot token private. Do not post it in chat, commit it to git, or share it in screenshots. If it leaks, open the bot page in the Discord Developer Portal and click Reset Token.

Add the open-discord-bridge mod

The mod must be installed on the server, not just in your local game.

Go to the AleForge Panel

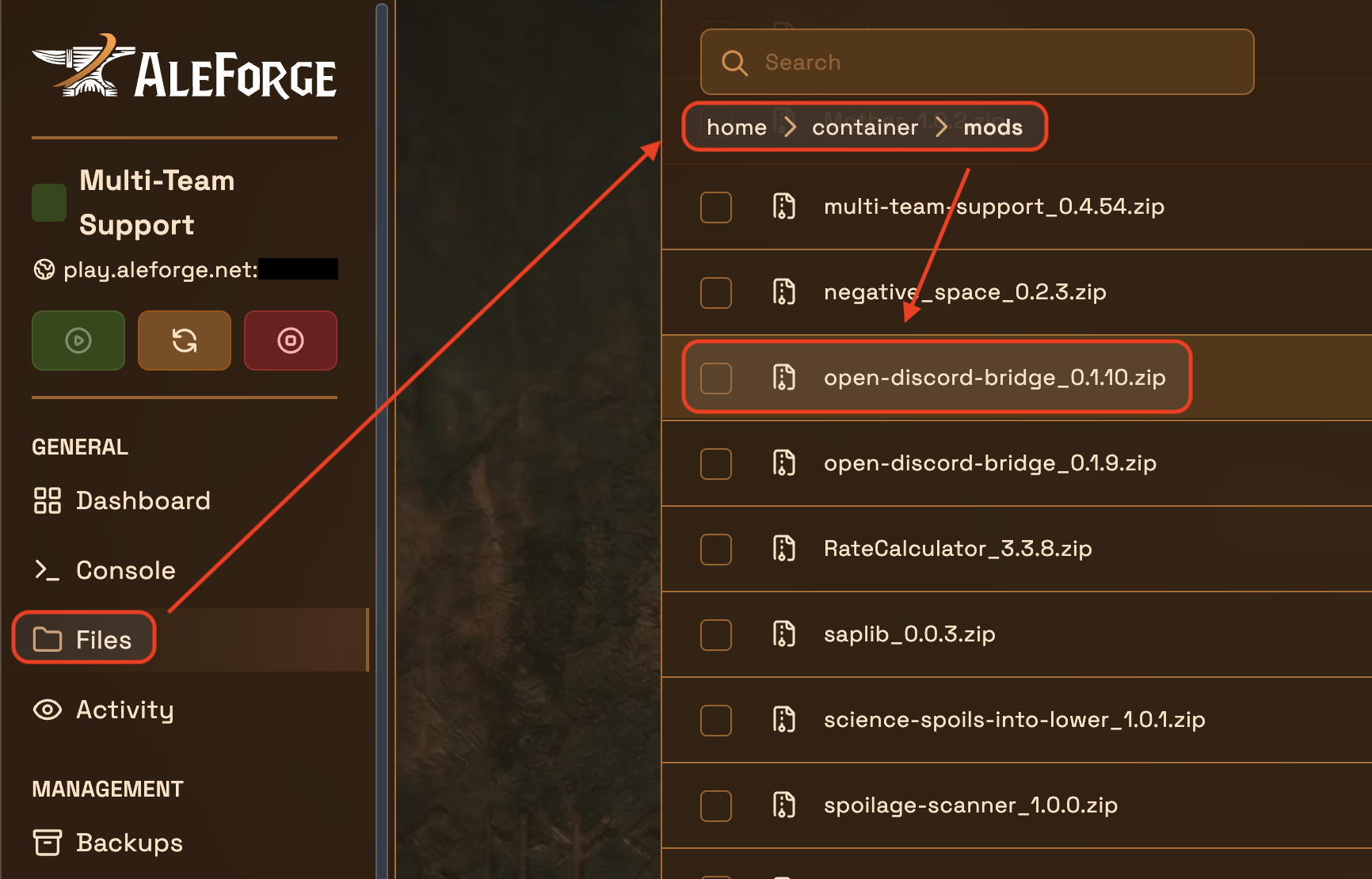

Add the open-discord-bridge mod through the mod manager, or upload the mod .zip from the Factorio mod portal into the server’s mods/ folder in File Manager

Add the open-discord-bridge mod through the mod manager, or upload the mod .zip from the Factorio mod portal into the se

No other mods are required. Events from mods like Multi-Team Support are relayed automatically.

Create a Discord bot

Go to the Discord Developer Portal and log in

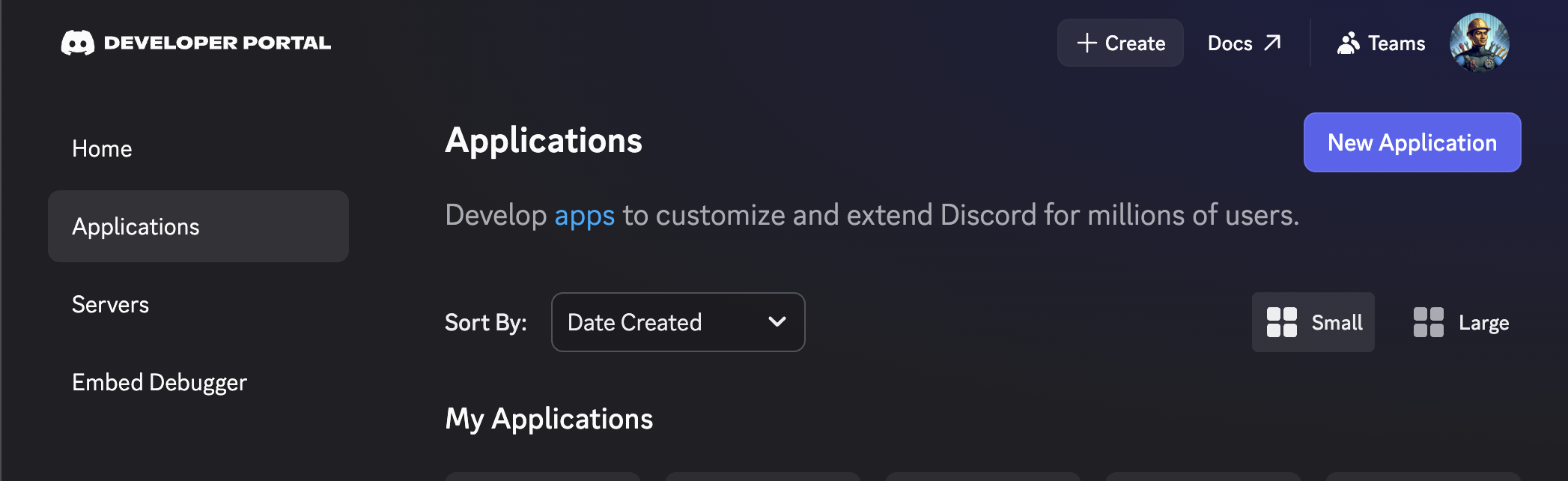

Click New Application

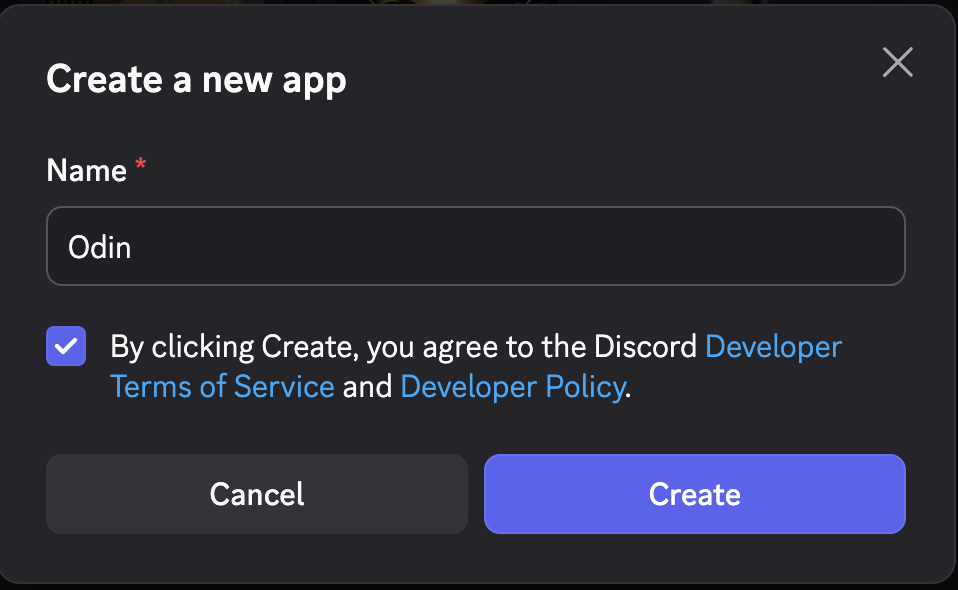

Enter a name and click Create

Enter a name and click Create

Open the Bot tab. You can set the bot’s username and avatar here if you want.

Copy the bot token

On the Bot tab, find Token and click Reset Token

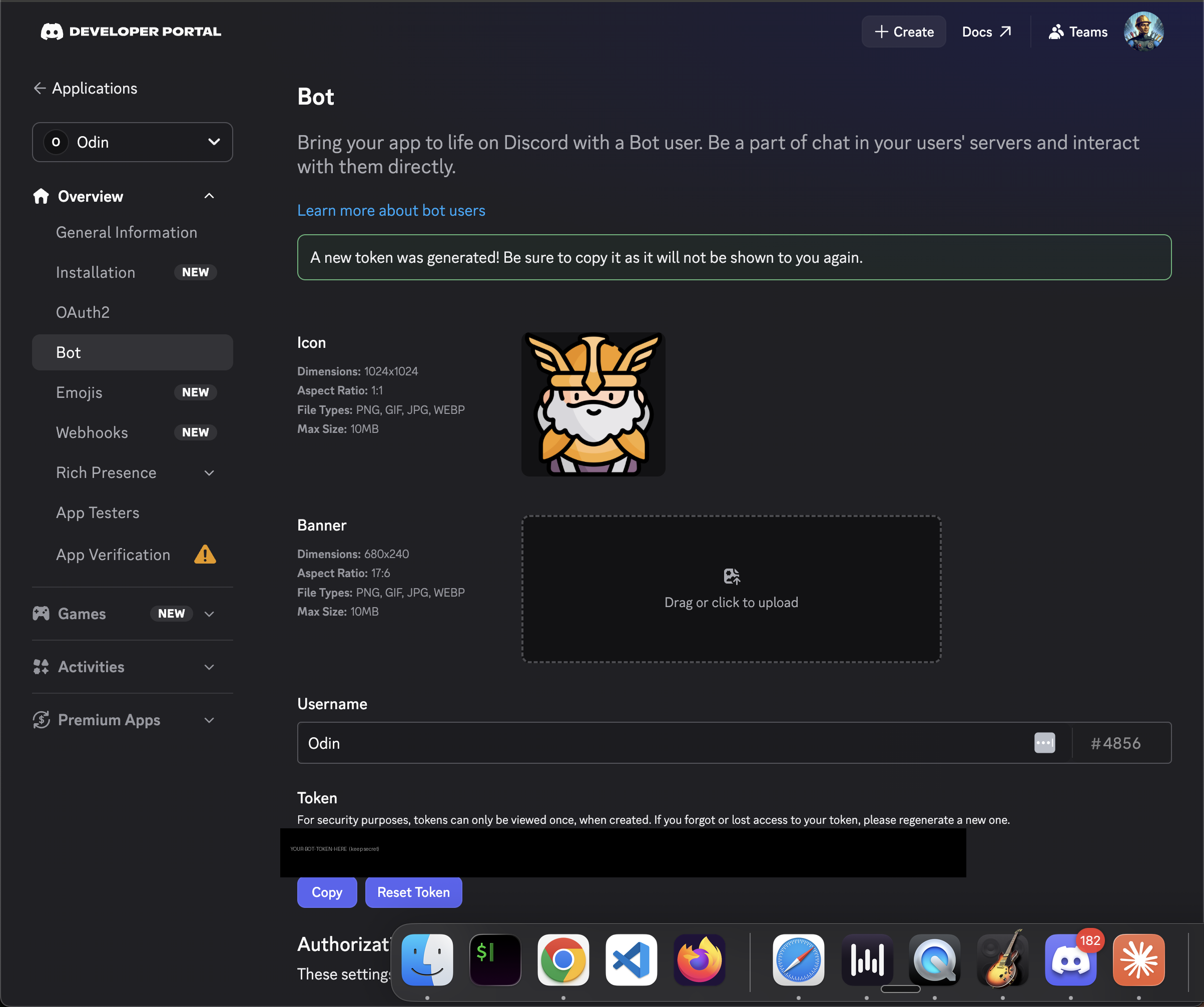

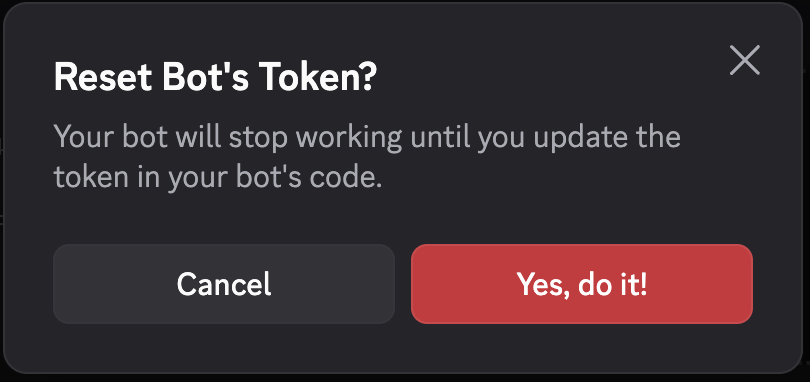

Confirm, then copy the token. Discord only shows it once. Save it for the Startup step below.

Confirm, then copy the token. Discord only shows it once. Save it for the Startup step below.

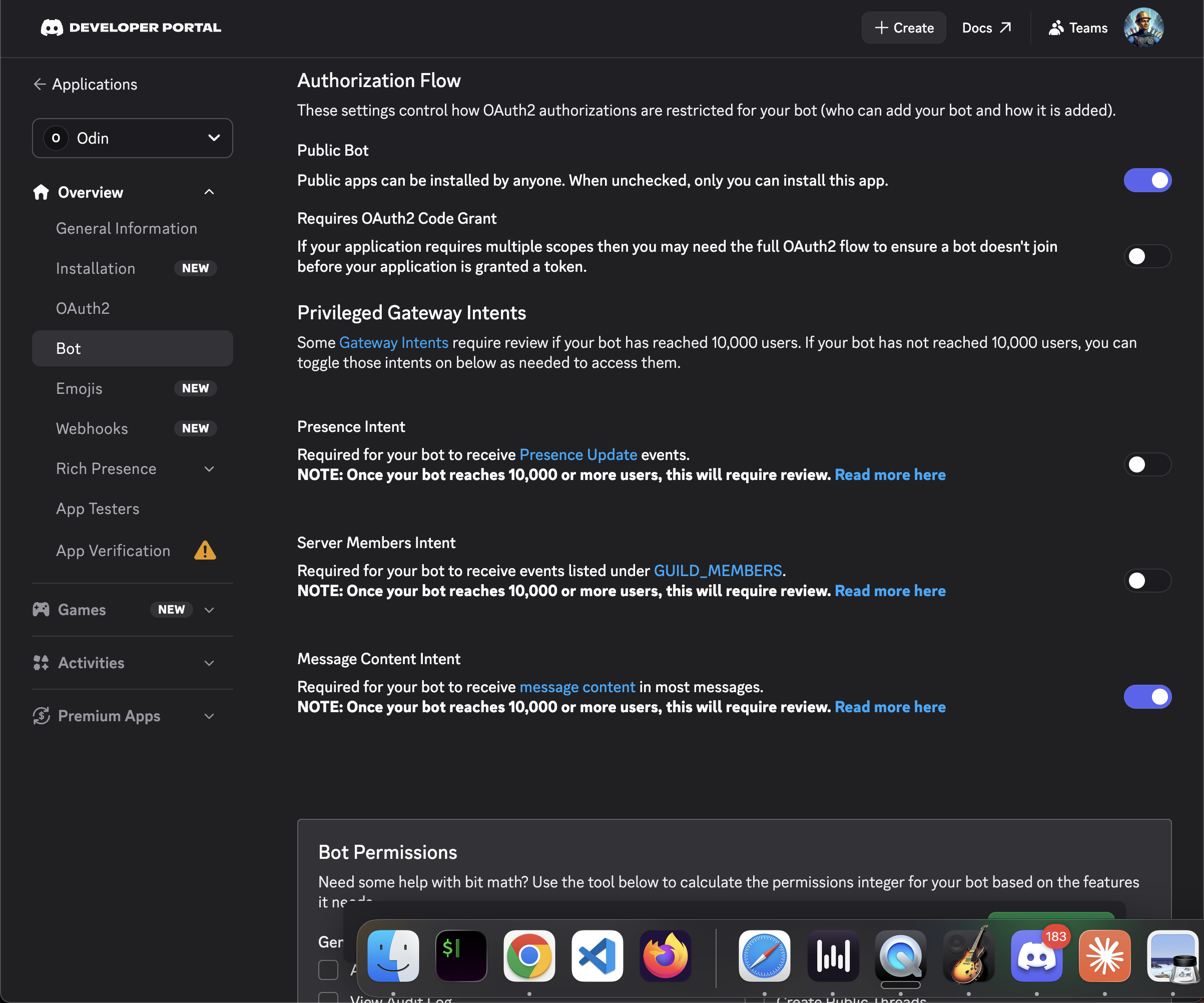

Enable Message Content Intent

On the Bot tab, scroll to Privileged Gateway Intents and turn on Message Content Intent, then click Save Changes.

Without this, messages from Discord will not reach the game. Game-to-Discord chat can still work, which makes this easy to miss. Leave Presence Intent and Server Members Intent off.

Without this, messages from Discord will not reach the game. Game-to-Discord chat can still work, which makes this easy

Invite the bot to your Discord server

Choose the bot scope

Open OAuth2 in the left sidebar
Scroll to OAuth2 URL Generator

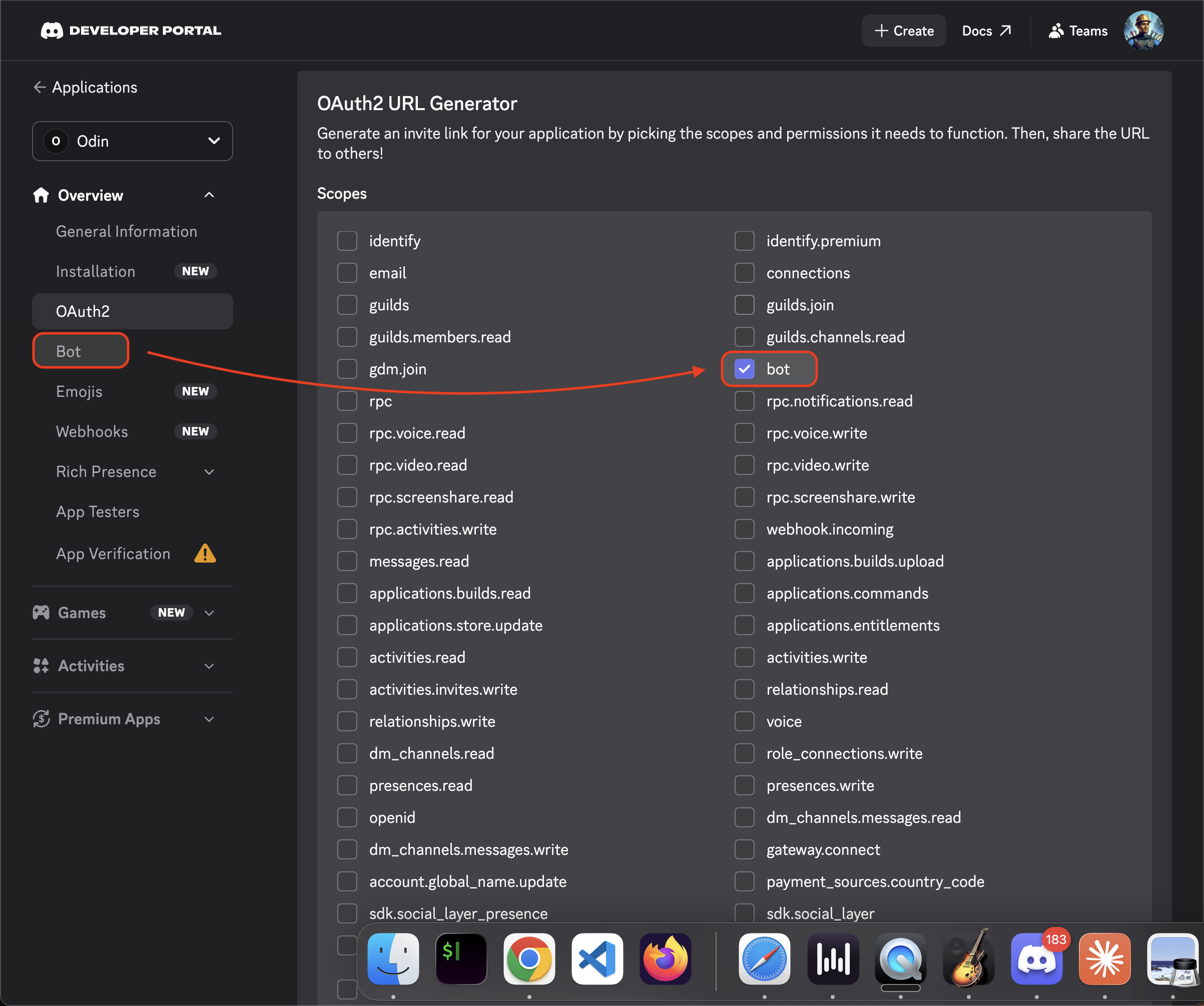

Under Scopes, check bot
Optionally check applications.commands if you want slash commands like /players

Optionally check applications.commands if you want slash commands like /players

Choose bot permissions

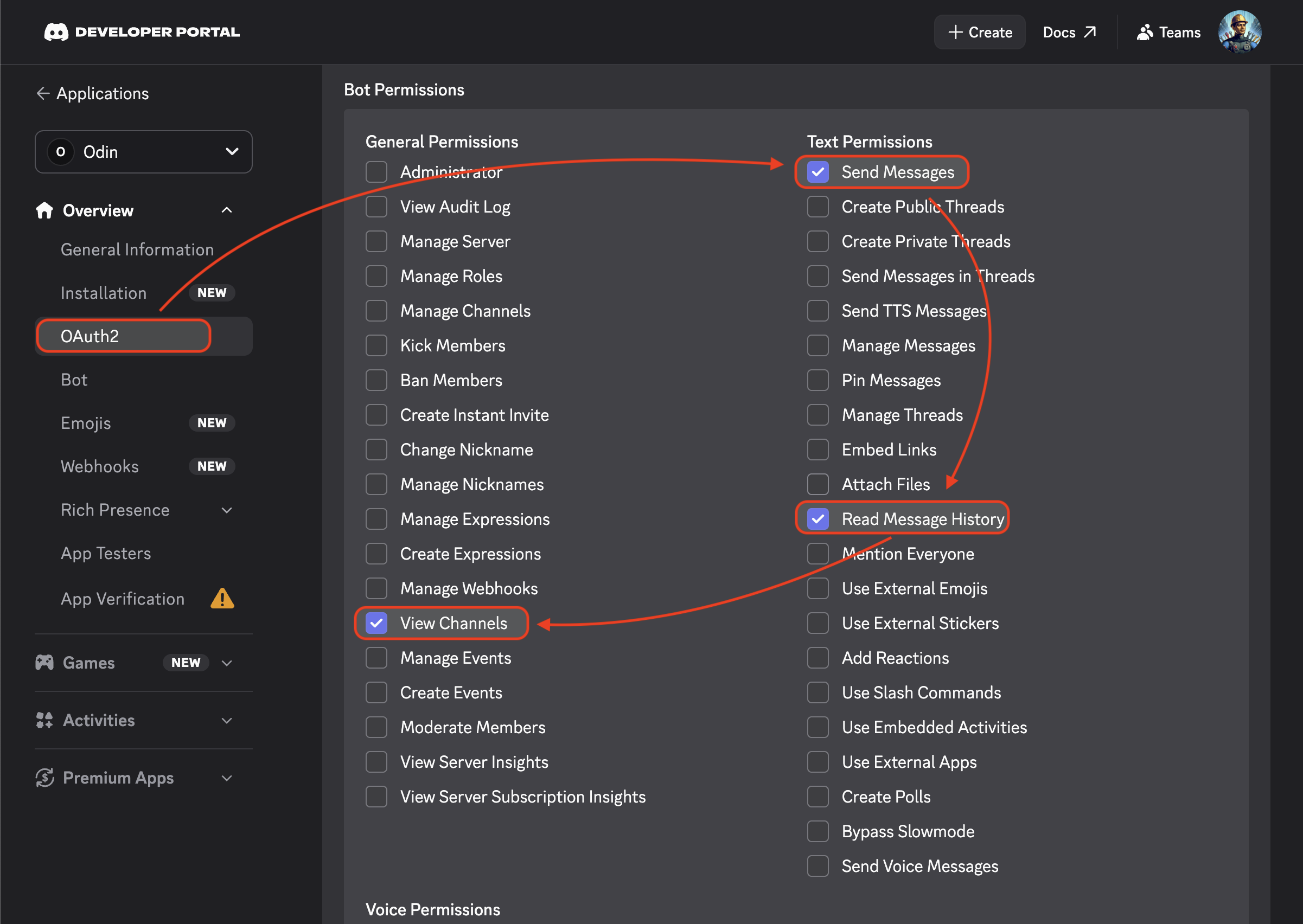

Under Bot Permissions, check:

View Channels
Send Messages
Read Message History

Read Message History

Authorize the bot

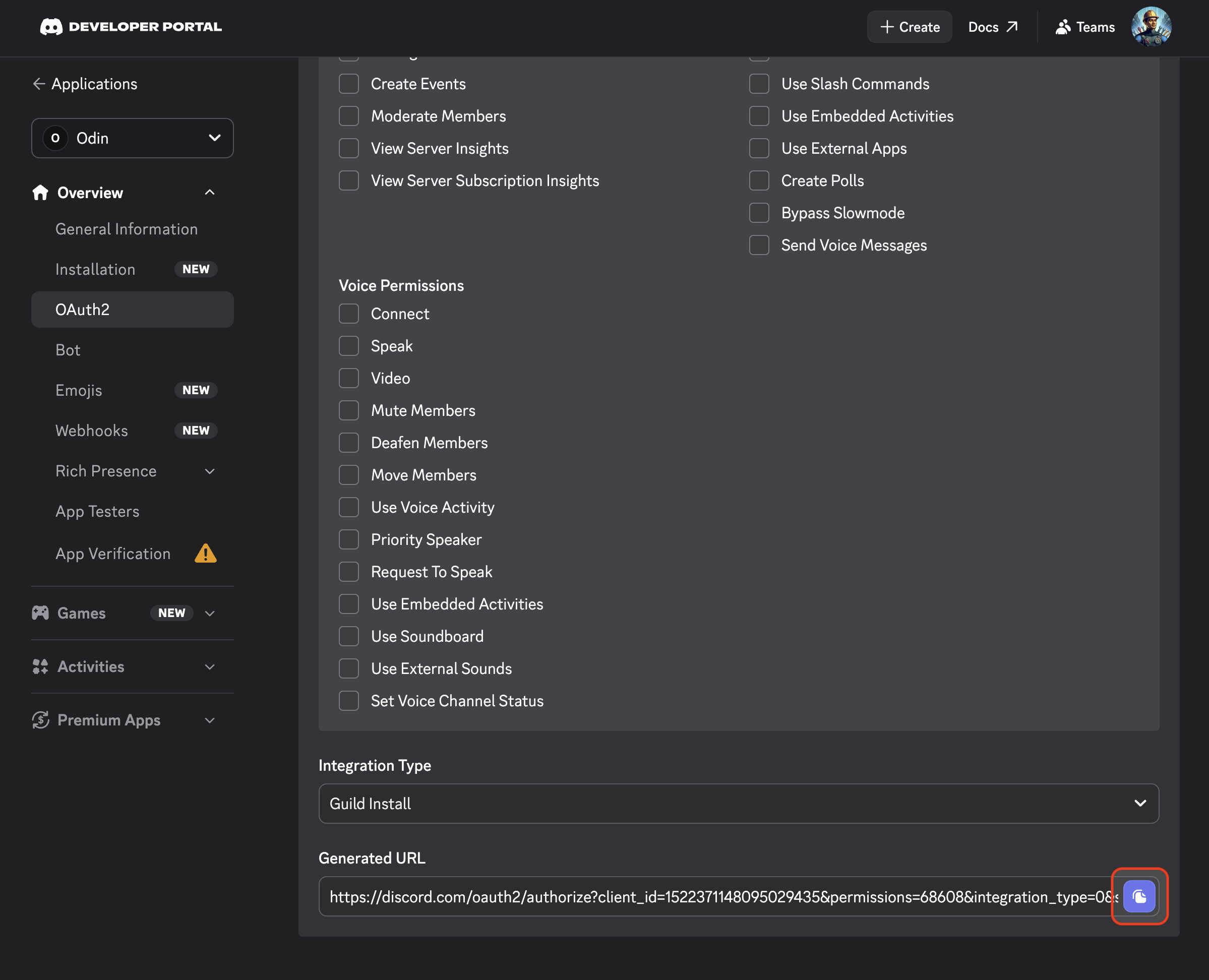

Copy the Generated URL at the bottom of the page

Copy the Generated URL at the bottom of the page

Open the URL in your browser

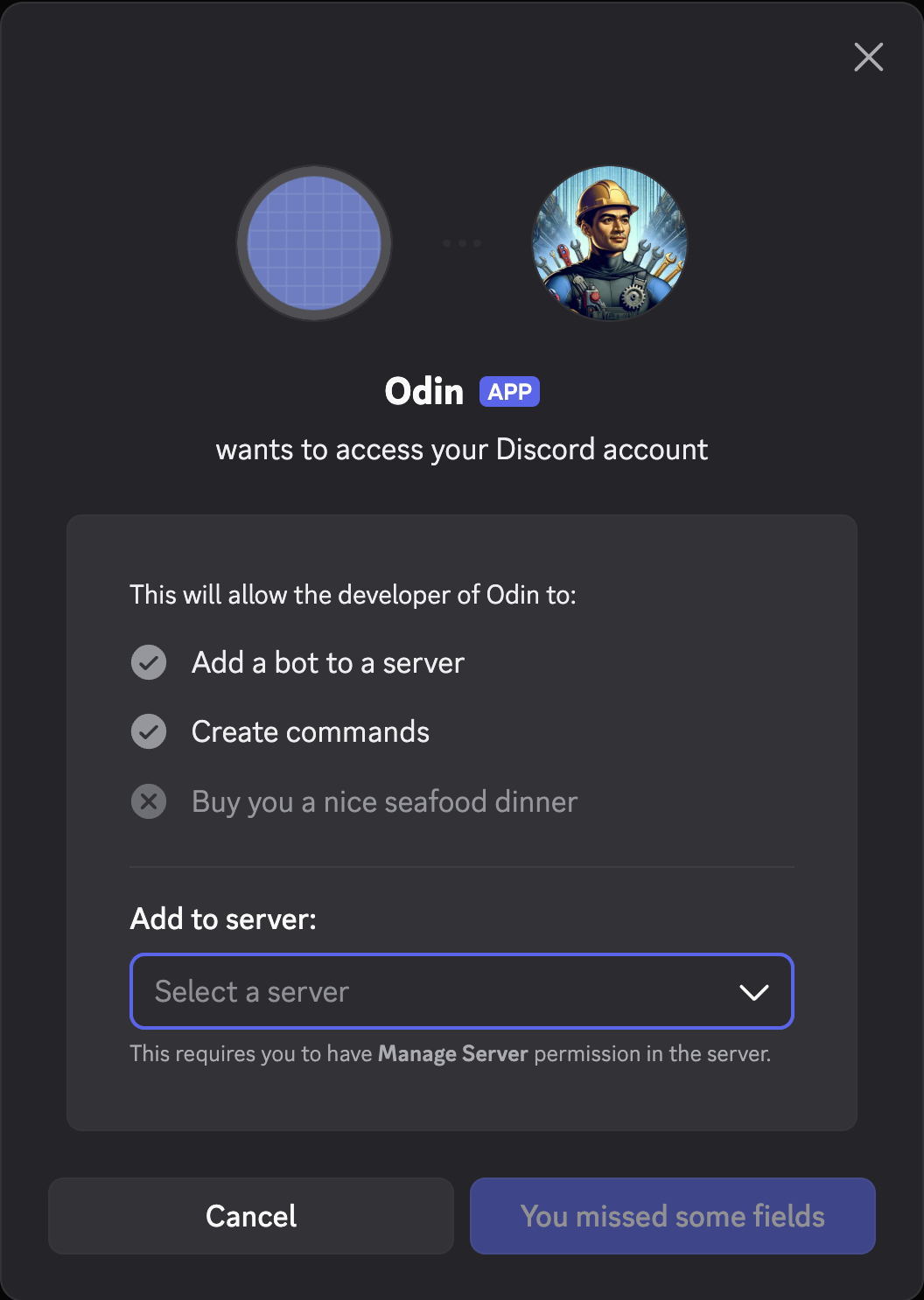

Select your server from Add to server, click Authorize, and complete the captcha

Select your server from Add to server, click Authorize, and complete the captcha

Create a channel and copy its ID

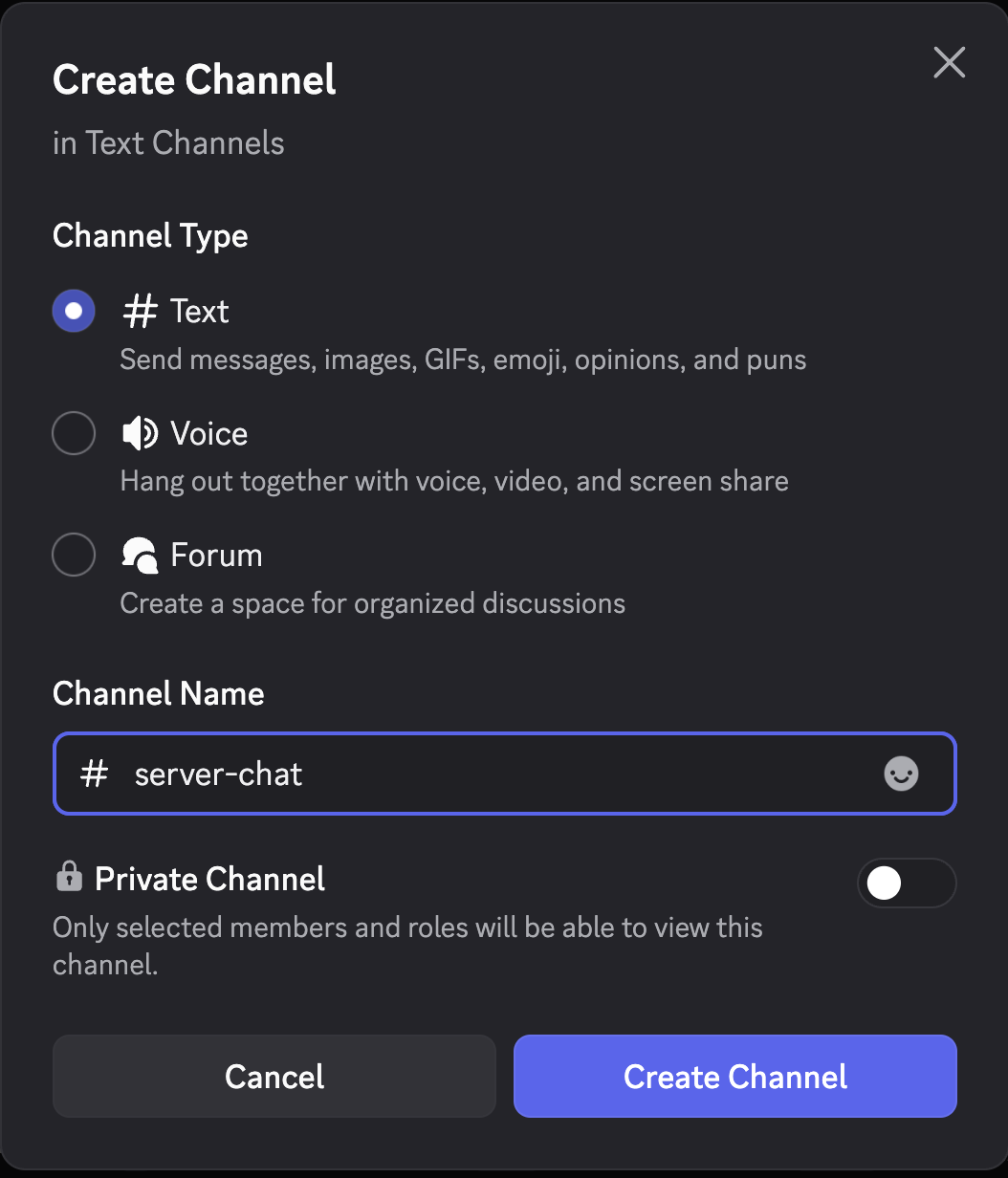

Create or pick a text channel for bridge chat, such as #server-chat
If the channel is private, give the bot access to it

If the channel is private, give the bot access to it

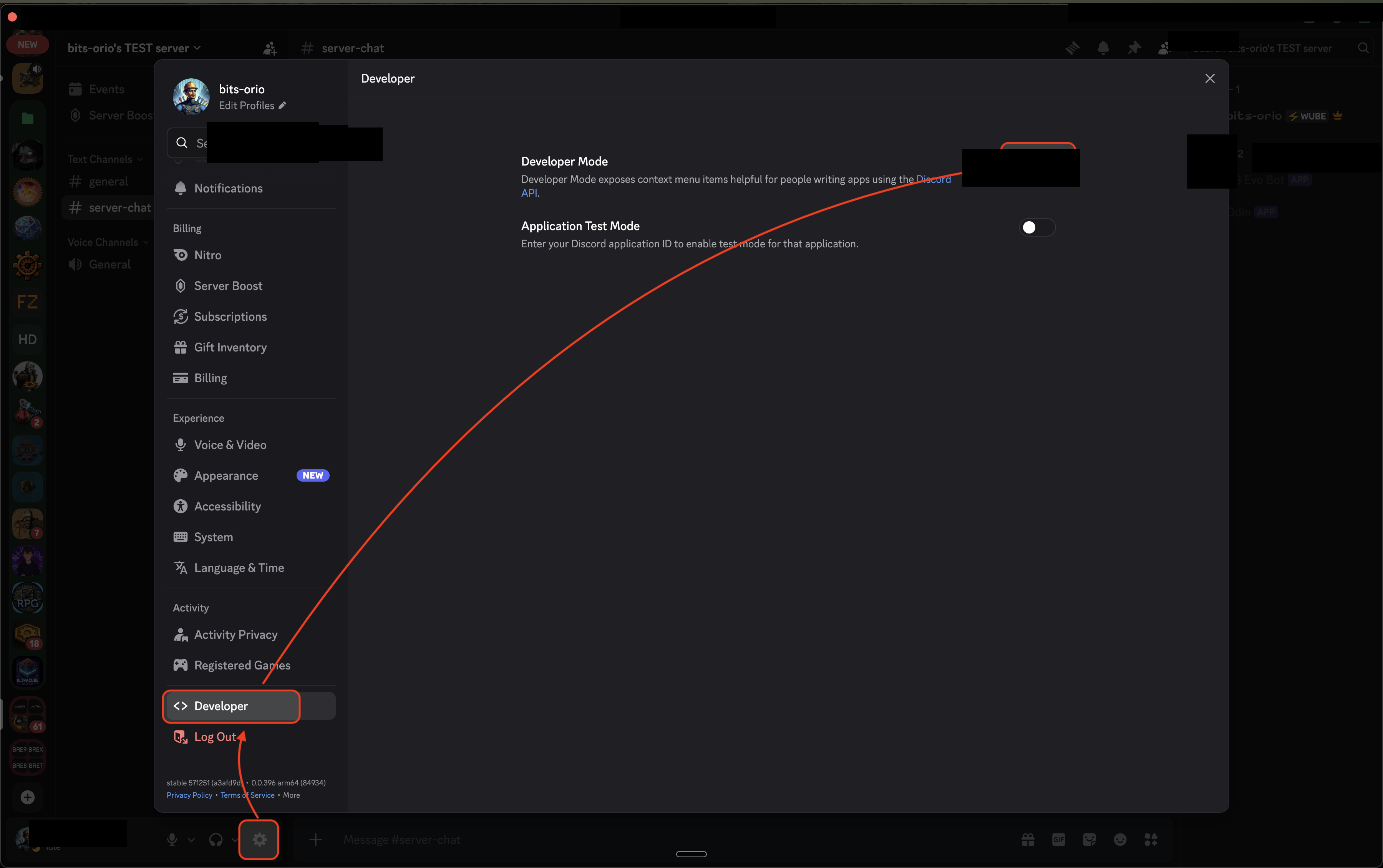

In Discord, go to User Settings → Advanced and turn on Developer Mode

In Discord, go to User Settings → Advanced and turn on Developer Mode

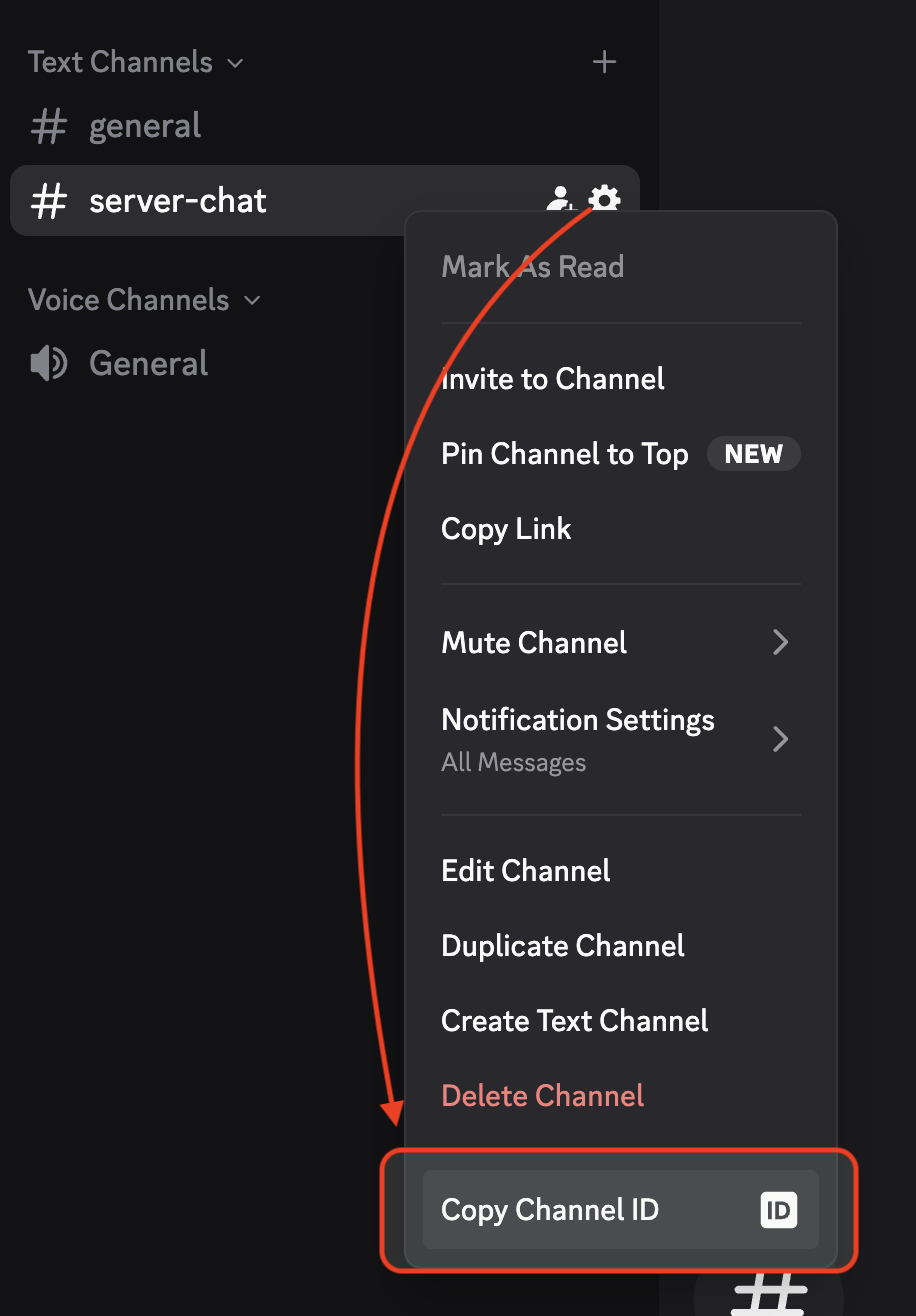

Right-click the channel and select Copy Channel ID

Right-click the channel and select Copy Channel ID

Configure Startup in the AleForge Panel

Go to the AleForge Panel

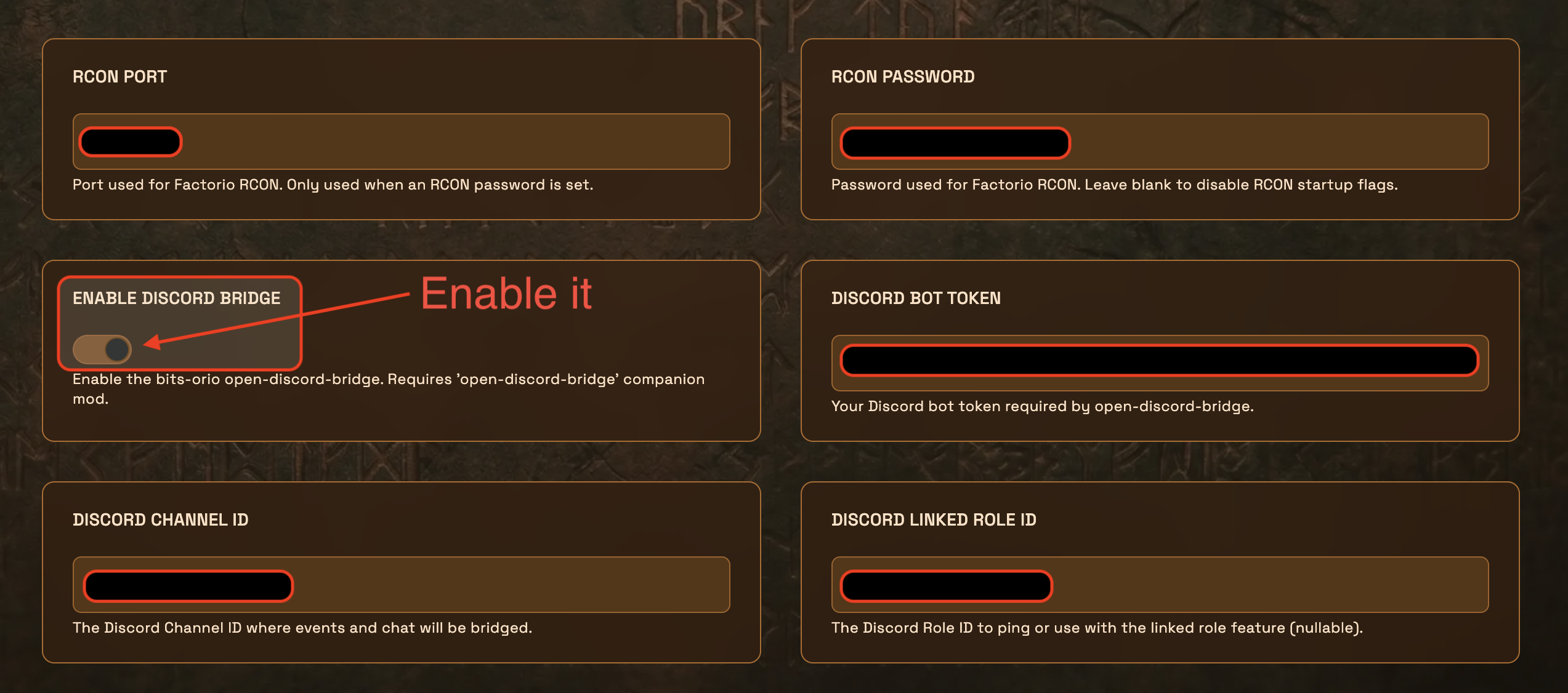

Open Startup and set:

Field	Value
`RCON Port`	Leave the default unless you changed it elsewhere
`RCON Password`	Set a password. RCON must be enabled for Discord-to-game chat
`Enable Discord Bridge`	On
`Discord Bot Token`	The token from above
`Discord Channel ID`	The channel ID you copied
`Discord Linked Role ID`	Leave blank unless you set up linked roles below

Save the startup settings

Save the startup settings

Reinstall the server

AleForge installs the bridge during a reinstall.

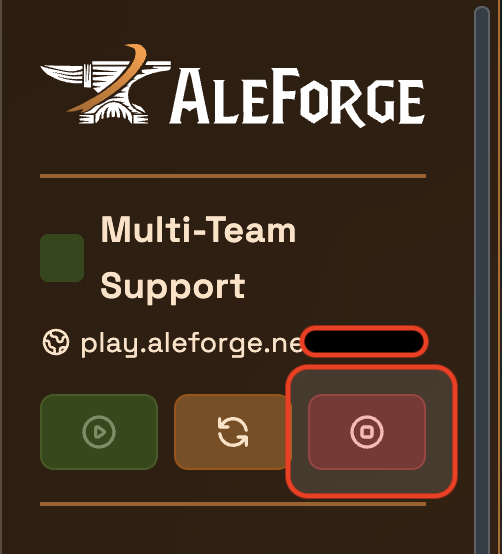

Stop the server and wait until it is offline

Stop the server and wait until it is offline

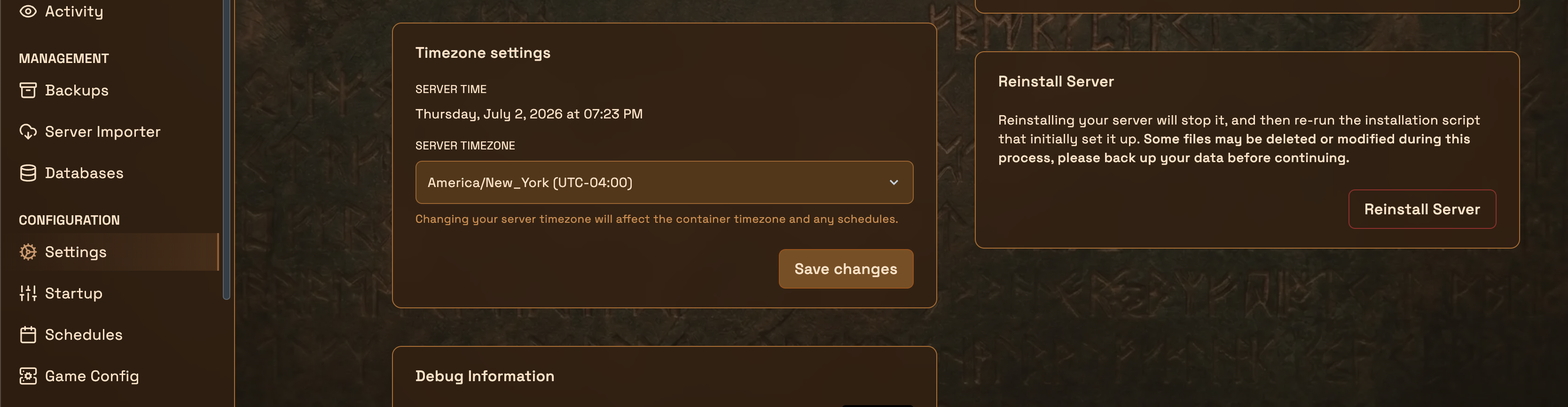

Go to Settings → Reinstall Server and confirm

Go to Settings → Reinstall Server and confirm

Reinstalling reruns the install script. Saves and mods are kept, but take a backup first if you want one.

Start the server after the reinstall finishes

Test the bridge

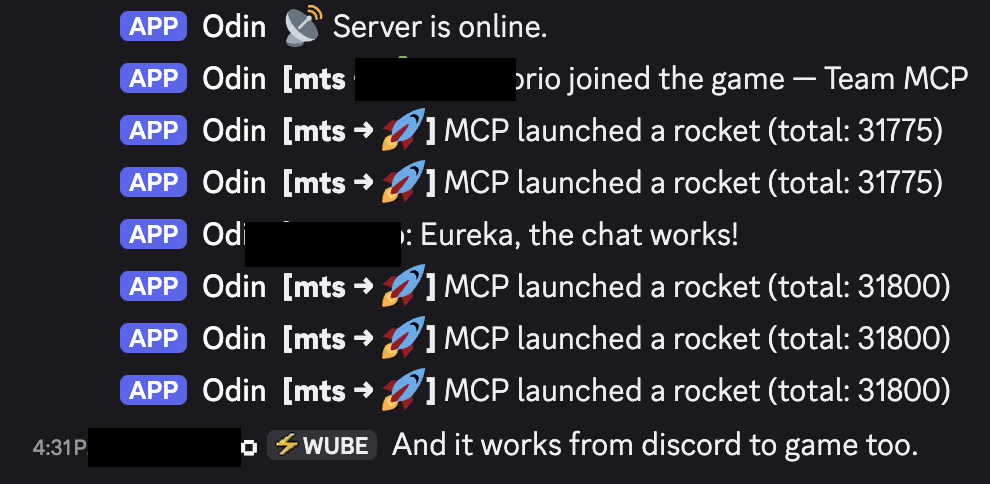

Game to Discord: Join the server or use the panel Console and send a chat message. It should appear in your Discord channel within a few seconds.

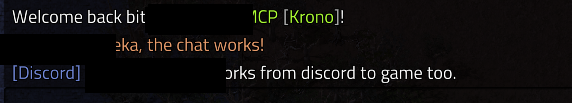

Discord to game: Send a message in the channel. It should appear in-game as [Discord] yourname: message.

Discord to game: Send a message in the channel. It should appear in-game as [Discord] yourname: message.

Troubleshooting

Discord messages do not appear in-game

Check that Message Content Intent is enabled on the bot, and that RCON Password is set in Startup. Restart the server after changing either.

Nothing appears in Discord

Check that Enable Discord Bridge is on, the channel ID is correct, the bot is in that server, and the bot can view and send messages in the channel.

Other issues

On startup the bridge writes bridge.effective.yaml in its working directory. It lists which settings were found (SET or MISSING) and any warnings. The bridge also posts a warning in the channel if permissions are wrong.

Linked roles (optional)

ODB can assign a Discord role to players who link their Factorio and Discord accounts.

Give the bot Manage Roles and Manage Nicknames, then re-invite it or update its role permissions
In Server Settings → Roles, move the bot’s role above the role it should assign
Right-click the role and select Copy Role ID
Paste the ID into Discord Linked Role ID in Startup, then reinstall or restart

Players run /odb-link in-game to get a code, then complete the link in Discord.

Panel field reference

AleForge field	Bridge variable
RCON Port + RCON Password	`ODB_RCON_ADDRESS` (`127.0.0.1:<port>`) + `FACTORIO_RCON_PASSWORD`
Discord Bot Token	`DISCORD_BOT_TOKEN`
Discord Channel ID	`ODB_DISCORD_CHANNEL_ID`
Discord Linked Role ID	`ODB_LINKED_ROLE_ID`

More details: open-discord-bridge on GitHub
